CARLI SUSPENSION - BACKCOUNTRY SUSPENSION SYSTEM

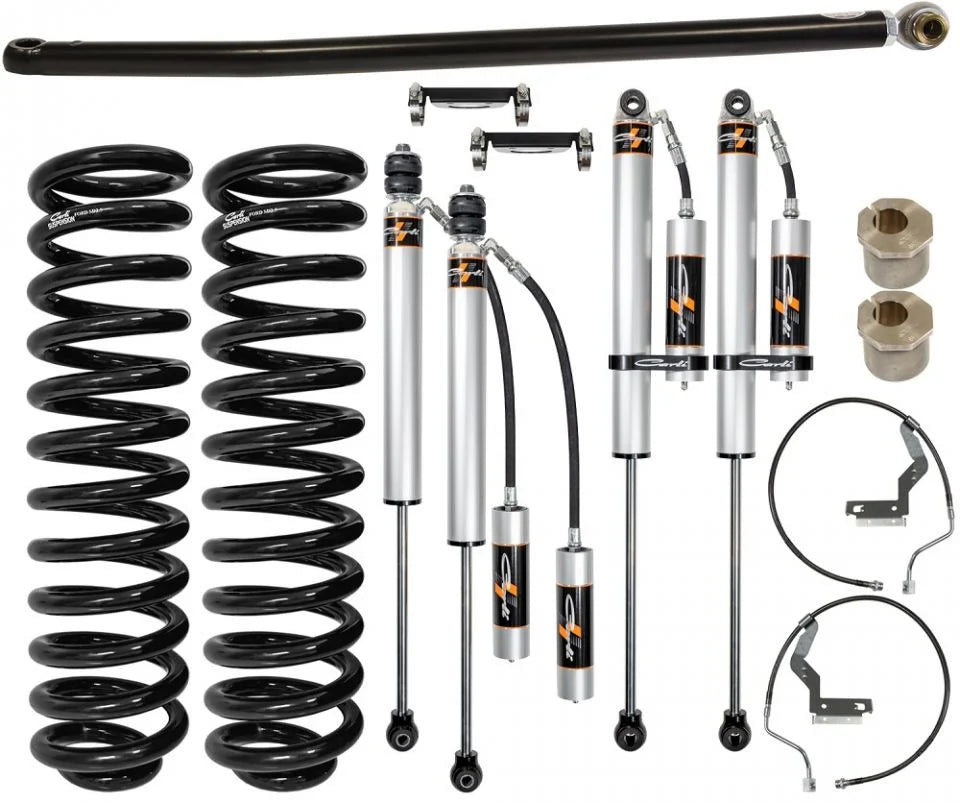

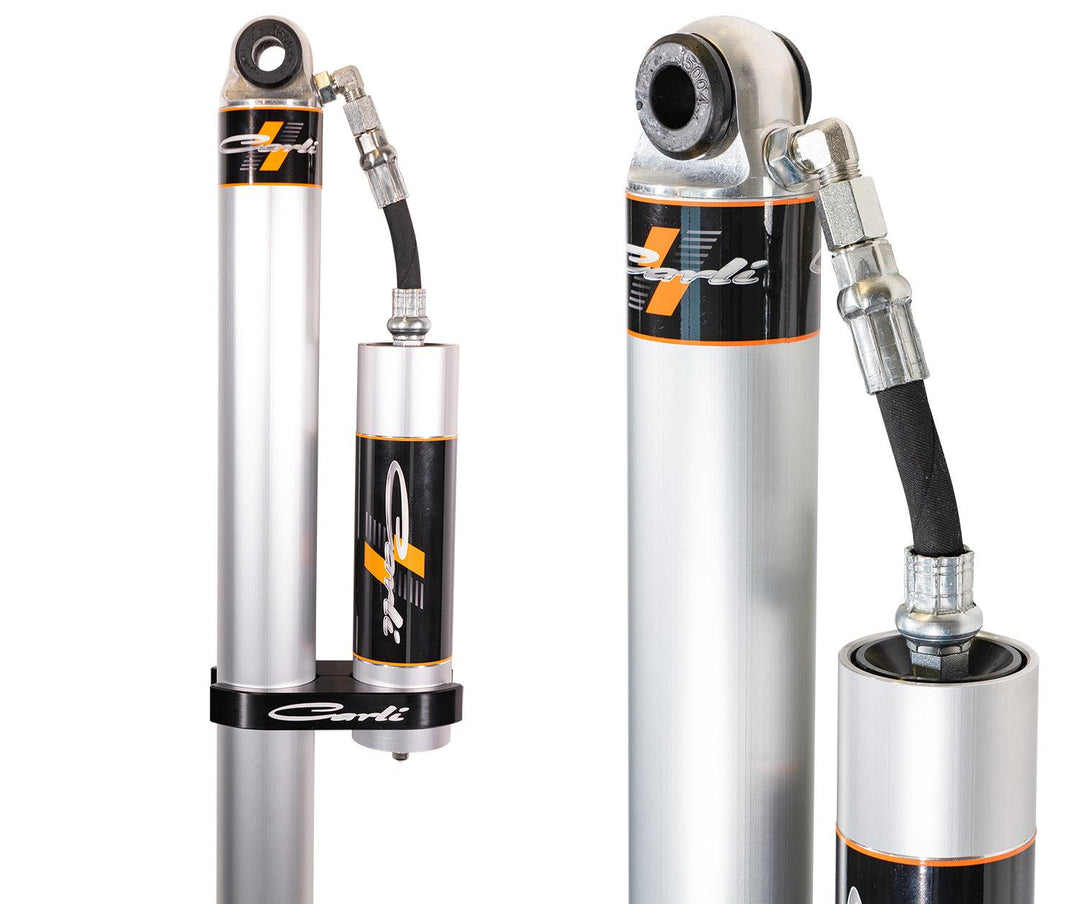

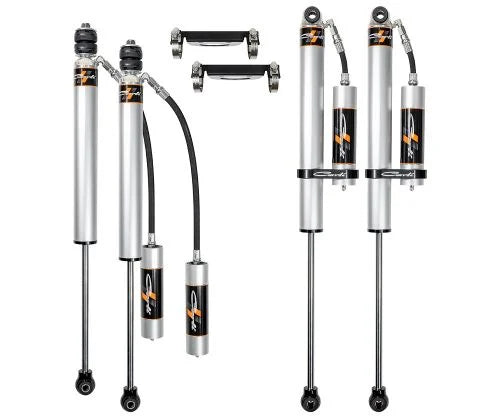

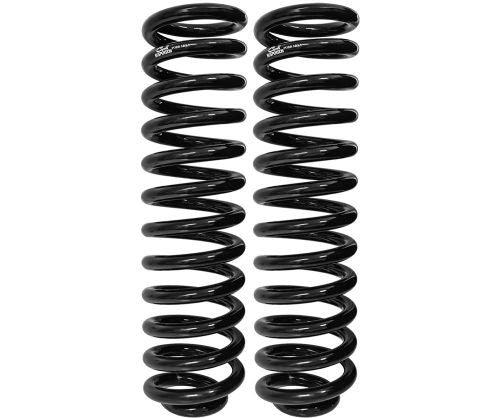

The Backcountry 2.0 Suspension System from Carli is about leveling your truck the RIGHT way. It's designed for people seeking light to medium off-roading while still maintaining good on-road driving. Utilizing Carli SPEC 2.0″ diameter shocks tuned for slow to mid speed off road use as well as all-around comfort and ride quality while driving in town, on the highway, towing, or hauling. Carli SPEC 2.0 boasts an aluminum body, hardened steel shaft, and full rebuild-ability. The shocks contain premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. Your truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. To accommodate the additional travel, the kit contains improved brake lines, an adjustable track bar, and caster adjusters to improve on the stock handling.

(after selecting an option, you can view an image of it by clicking up through the images above)

• Add-a-Pack
  • Replaces the stiff overload leaf with a pack of 6 progressive leafs for a smoother ride
  • Maintains original load carrying capacity
  • Rear will be even with the front or just slightly lower when paired with the 2.5″ front suspension system
• Full Progressive Leaf Spring Kit
  • Replaces stock 5 leaf design with a 12 leaf progressive design for a smoother ride
  • Only a slight reduction from a standard 3/4-ton load capacity
  • Rear will be 0.5" higher than front when paired with the 2.5″ front suspension system
• HD Full Progressive Leaf Spring Kit
  • For the customer that constantly has a +1,000lb load in their bed
  • Rear will be 1.0" higher than front when paired with the 2.5″ front suspension system
  • With an empty bed, these will lift the rear more than stated and ride very rigid

IMPORTANT NOTES:

• Wheels: Carli recommends a 17"-18" wheel, no more than 9" wide with 5" - 5.5" of backspacing
• Tires: 35", E-rated tire is recommended. Tire pressure 45psi front, 40psi rear
• Configuration: Carli leveling systems are designed and tested on vehicles with 17"-18" wheels with 35", E-rated tires. Running stock wheels and tires or a larger wheel diameter will result in a stiffer ride.
• Add-a-Pack: Super-Duties equipped with a factory 3-5/8" block will require the 2" factory block (Part numbers 7C3Z-5598-L, and 7C3Z-5598-K) to achieve a level stance. Fits 3.5″ axle tube.
• Full Rear Leaf Spring Kits: Full leaf spring kits require NO BLOCKS to achieve a proper stance.
