Foutz Motorsports

Foutz Motorsports - Raptor Front Limit Strap & Bump Stop Kit for Stock Lower Arm ( GEN 3 Raptor)

Foutz Motorsports - Raptor Front Limit Strap & Bump Stop Kit for Stock Lower Arm ( GEN 3 Raptor)

$1,799.99 USD
$1,799.99 USD
Sale Sold out
Shipping calculated at checkout.

GET THE ULTIMATE UPGRADE FOR YOUR STOCK FRONT SUSPENSION WITH OUR GEN 3 RAPTOR LIMIT STRAP & BUMP STOP KIT

 FEATURES & BENEFITS
• Designed to work with the factory stock lower a-arm & bolt on to the cast aluminum.
• Limits the top out travel and saves your top shock mount from premature damage.
• Extends the life of the front suspension components
• Restraints the top out so you don't have to rely on just the shock to stop the droop.
• An absolute must-have If you’re using aftermarket springs on your Raptor
• Engineered to work with the Fox, King, or ADS front bump stops.  2.5" OD and 2.5" travel bump stop provides full bottom out protection.
• Made for Gen 3 Raptor / Raptor R ( 2021, 2022, 2023 & 2024 )

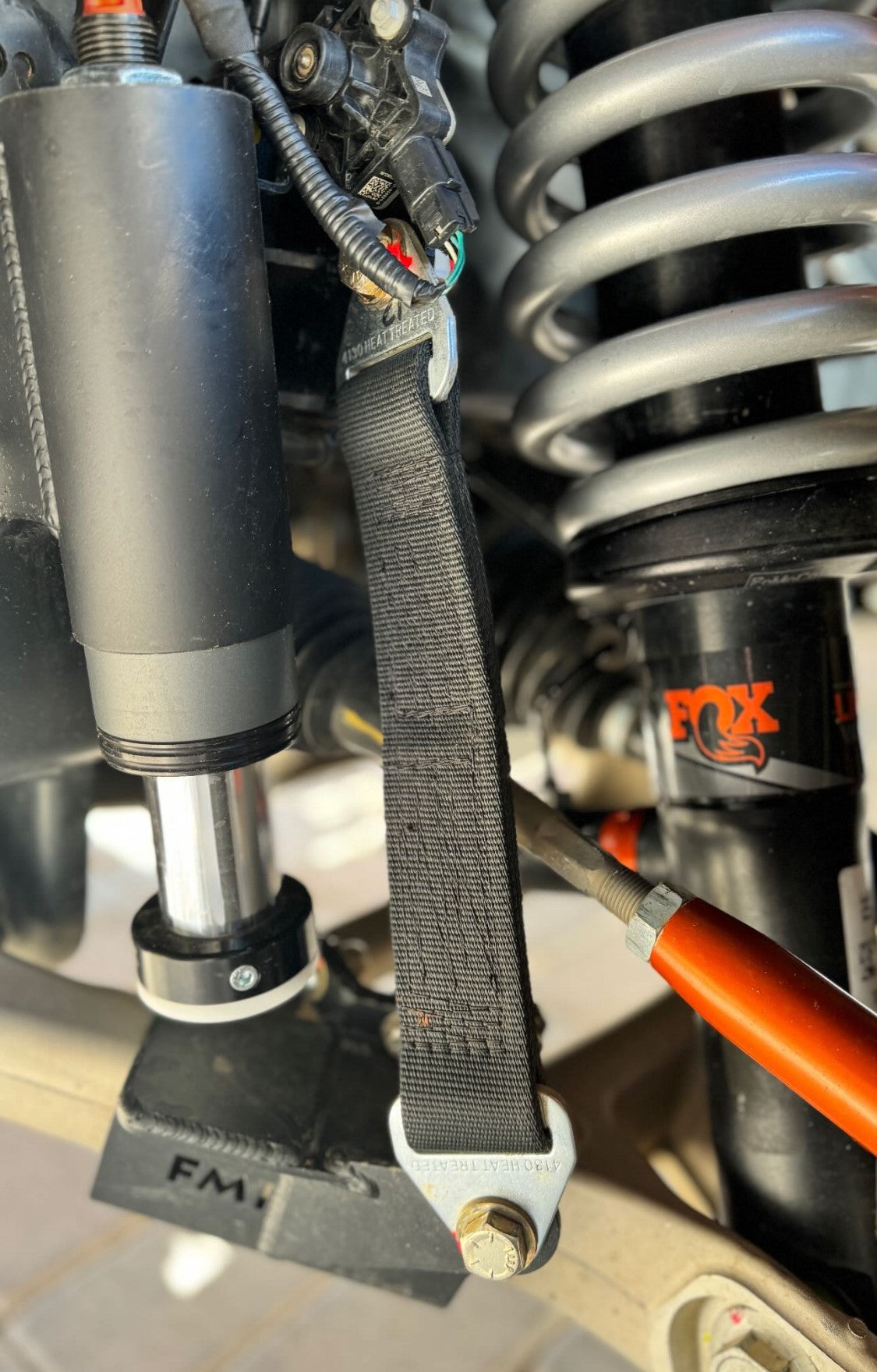

STRAPS WITH DURABILITY & STRENGTH
• They are 12 inches long and made of high quality material that allows them to withstand abuse when you off-road.
• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black.
•  Their extreme durability will provide you with long lasting strength, unlike other cheap straps that will stretch and wear out over time.

MOUNTING BRACKETS  WITH BUILT-IN BUMP PAD
• A bump stop pad is built into the mounting brackets as an easy addition for a front bump stop kit to be added at any time.
• The mounting brackets secure around the front of the lower stock control arm and are mig welded in house and then finished in a hammer black powder coat for ultimate durability and strength.


*** INSTALLATION NOTICE ***
This kit requires you to weld the Bump stop mount to the frame and should be installed by a qualified welder/fabricator - It will not work with Fox upgraded 3.0 hoses without rebuilding shocks and hose kit

KIT INCLUDES:
( 2 )    12" length Limit Straps
( 2 )    Bump stop can mounts
( 2 )    2.5" dia x 2.5" travel bump stops
( 2 )    Main Mounting Brackets
( 2 )    Mounting Bracket Backing Plates
Lower Control Arm Mounting Bracket Hardware:
( 10 )   3/8-16  x 1 1/4" Bolts
( 10 )   3/8-16 Nyloc Nuts
( 6 )     3/8 Washers
Lower Strap Mounting Bracket Hardware
( 2 )    1/2-20  Nyloc Nuts
( 2 )    1/2-20  Shallow Nyloc Nuts
( 2 )    1/2-20  12 point Bolts
( 4 )    1/2 Washers
Upper Strap Mounting Bracket Hardware
( 2 )    1/2-13 x 1 1/2"  Bolts
( 2 )    1/2-13  Nyloc Nuts
( 4 )    1/2   Washers



Raptor Front Limit Strap and Bump Stop for Stock Lower Arm 2021, 2022, 2023, 2024

FOX BUMP - FMI050033955030101
KING BUMP - FMI050033955130101
ADS BUMP - FMI050033955230101
