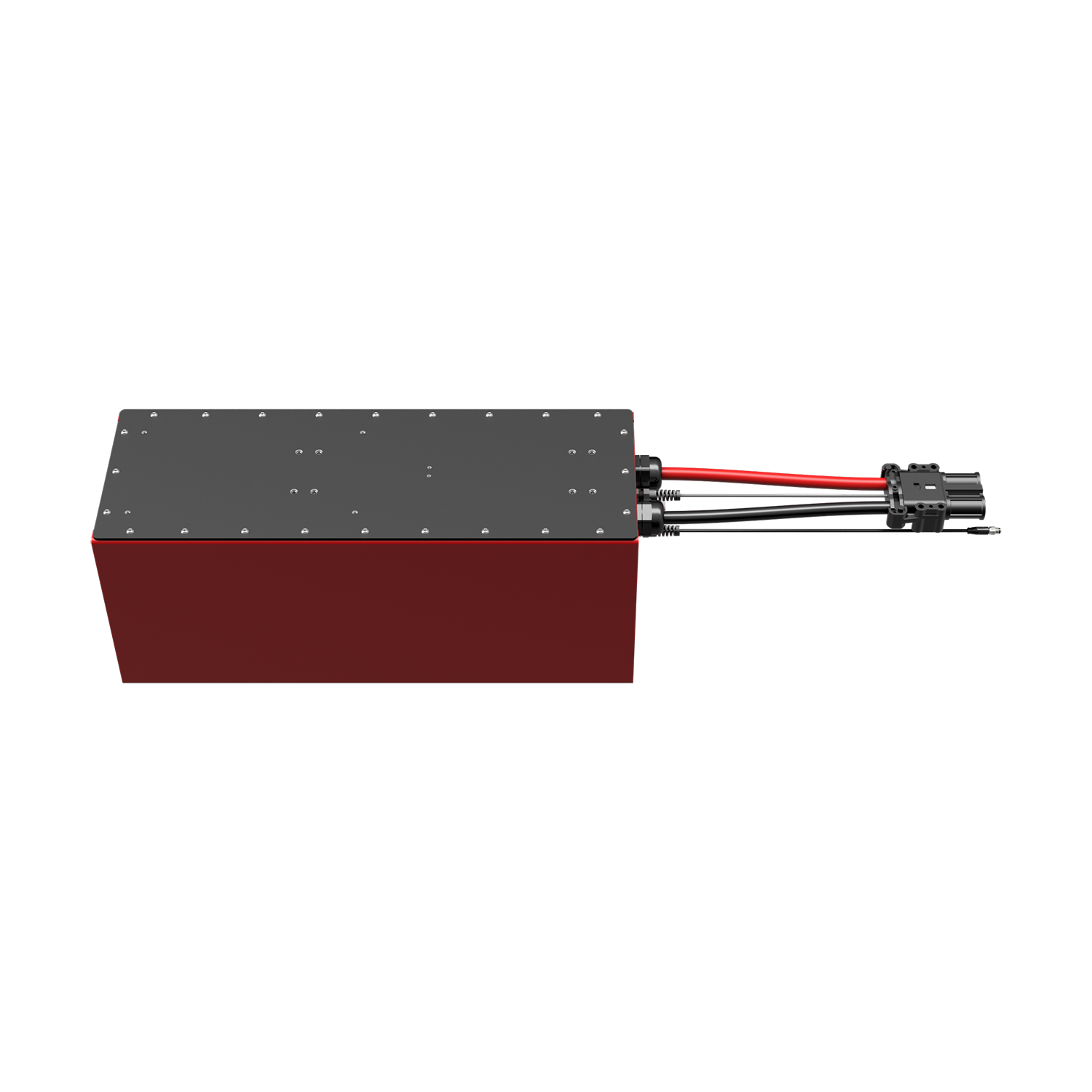

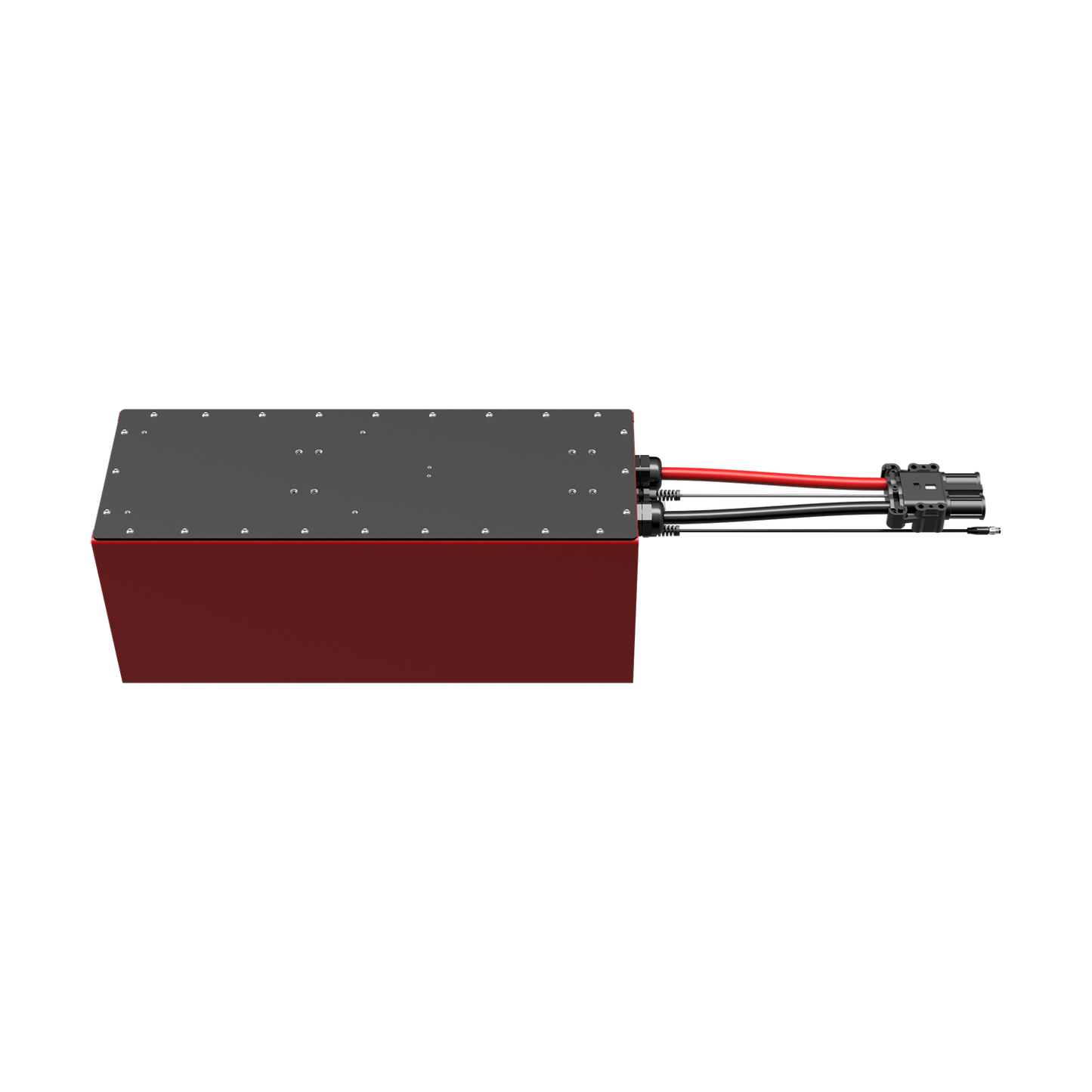

LITHIONICS BATTERY 51V 110AH F27 GTX Module

LITHIONICS BATTERY 51V 110AH F27 GTX Module

$7,694.40 USD
$7,694.40 USD
Sale Sold out
Shipping calculated at checkout.

Why Choose Lithionics?

Lithionics' high-quality, USA-made batteries are paired with industry-leading warranty & support to offer an unparalleled product experience. Lithionics sets itself apart from competitors with their internally heated units, spatially efficient design, and NeverDie® BMS features. By bench-testing every product before shipment, you can rest assured that your battery will be ready for adventure the moment it arrives!

MODEL NUMBER: GTX51V110A-F27-DIN-MODULE

ENERGY:

110 AMP HOURS

PULSE AMPS: 1000 (1 SEC)

5632 WATT-HOURS

EXTERNAL BMS REQUIRED

BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.

Item

Model:
GTX51V110A-F27-DIN-MODULE
Nominal Voltage:
51.2V
Nominal Capacity:
110 AH
Nominal Watt Hours:
5632 WH
Internal Resistance:
<300 milliohms
Charge

Charging temperature range:
32F/0C to 131F/55C
Charge voltage:
57.6V
Recommended float charge voltage:
53.6V
Recommended charge current:
50A
Allowed max charge current:
100A
Discharge

Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
46.4V to 53.6V
Recommended discharge current:
50A
Max discharge current:
200A
Pulse discharge current:
1000 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 48.0V Low-Voltage Cut-Off @46.4V
Mechanical characteristics

Length:
27.0in
Width:
9.0in
Height:
10.2in
Weight:
Approx. 98lbs (44.5kg)
Storage

Storage Temperature & Humidity Range:
< 1 Month
-4~95°F (-20~35°C), 45~75%RH

< 3 Months
14~86°F (-10~30°C), 45~75%RH

Recommended storage
59~95°F (15~35°C)，45%RH~75％RH
Self-discharge rate:
Residual capacity
≤3% per month; ≤15% per year

Reversible capacity
≤1.5%per month; ≤8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 52.8V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
