Triple R - Ford F150 Raptor Grill Kit (2024+)

Triple R - Ford F150 Raptor Grill Kit (2024+)

$1,145.00 USD
$1,145.00 USD
Sale Sold out
Shipping calculated at checkout.
Select your light option:

Please note: Grille kits with Carbon-6 (Yellow Dip) LED lights are currently out of stock. Please get in touch for current lead times.

For an OE quality, auxiliary LED light bar installation, the Triple-R Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Triple-R LED light bars within the front grille of a growing number of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting setup remains fully robust and secure.

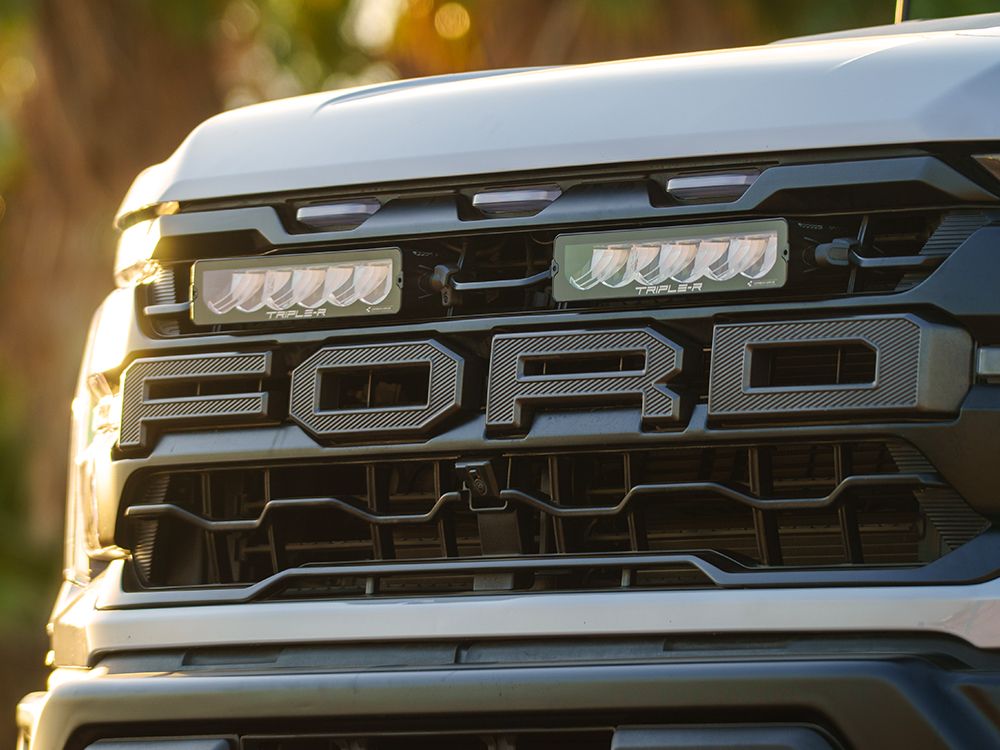

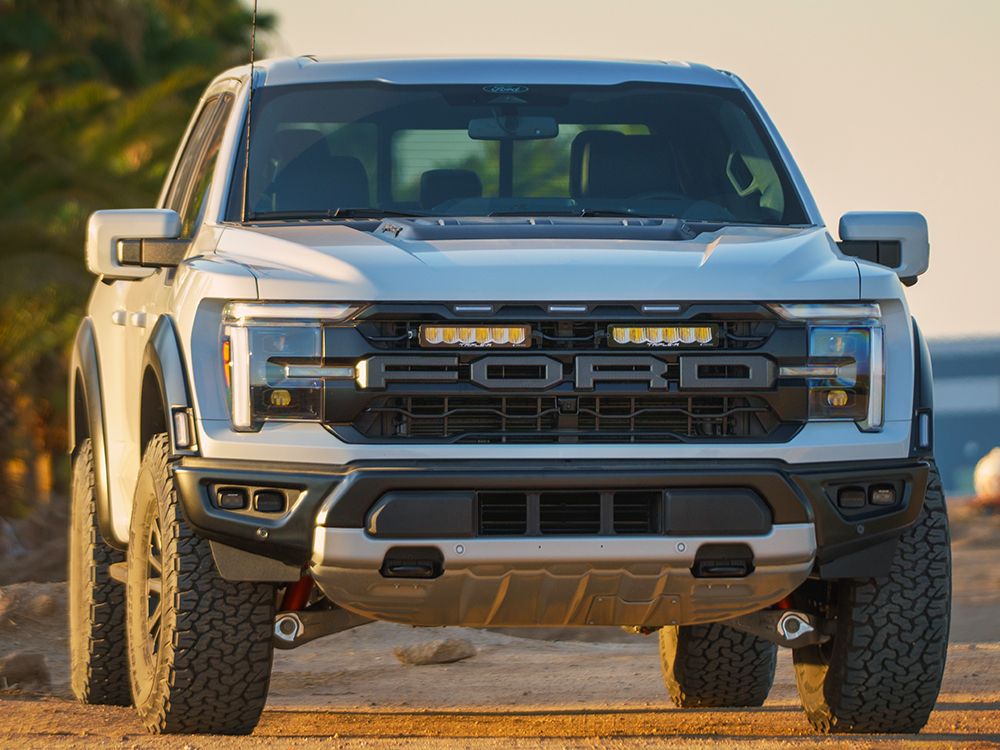

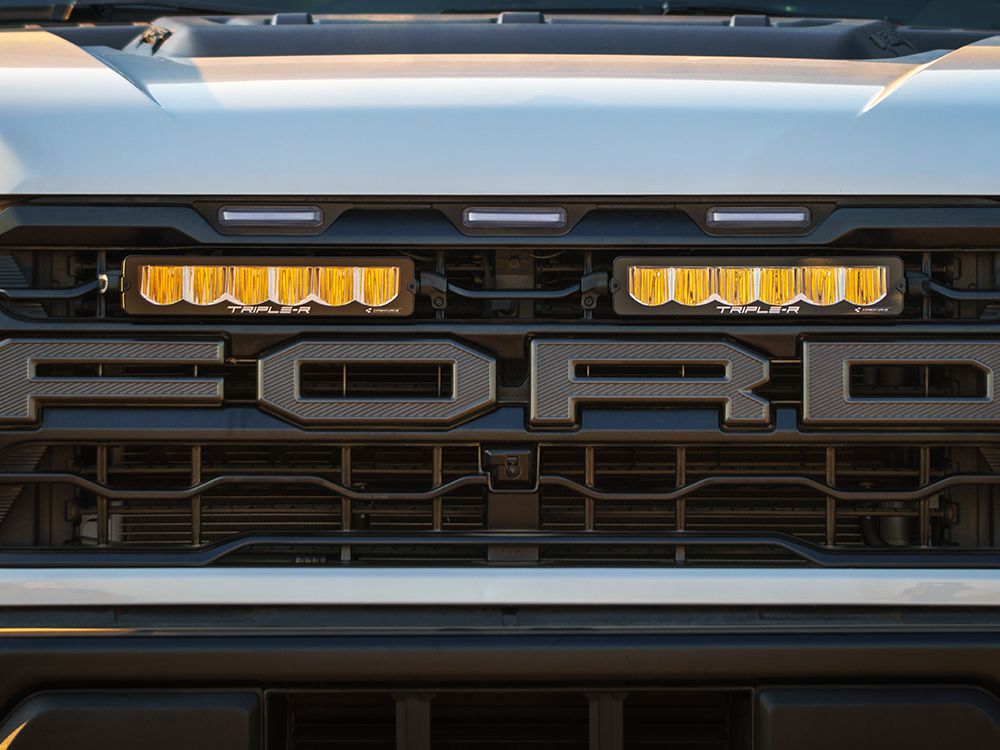

The Ford Raptor F-150 (2024+) grille integration kit includes a pair of Carbon-6 High Performance LED lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in excellent condition year after year

The Ford Raptor F-150 (2024+) Grille Integration Kits are optimised for use with Carbon-6 High Performance LED light bars, available with Spot or Drive beam pattern. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.

Product Features:

Bespoke vehicle integration kit for Triple-R Lights LED light bar installation

  • Custom fit for Ford Raptor F-150 (2024+)
  • Available with: Carbon-6 High Performance LED lights, each with

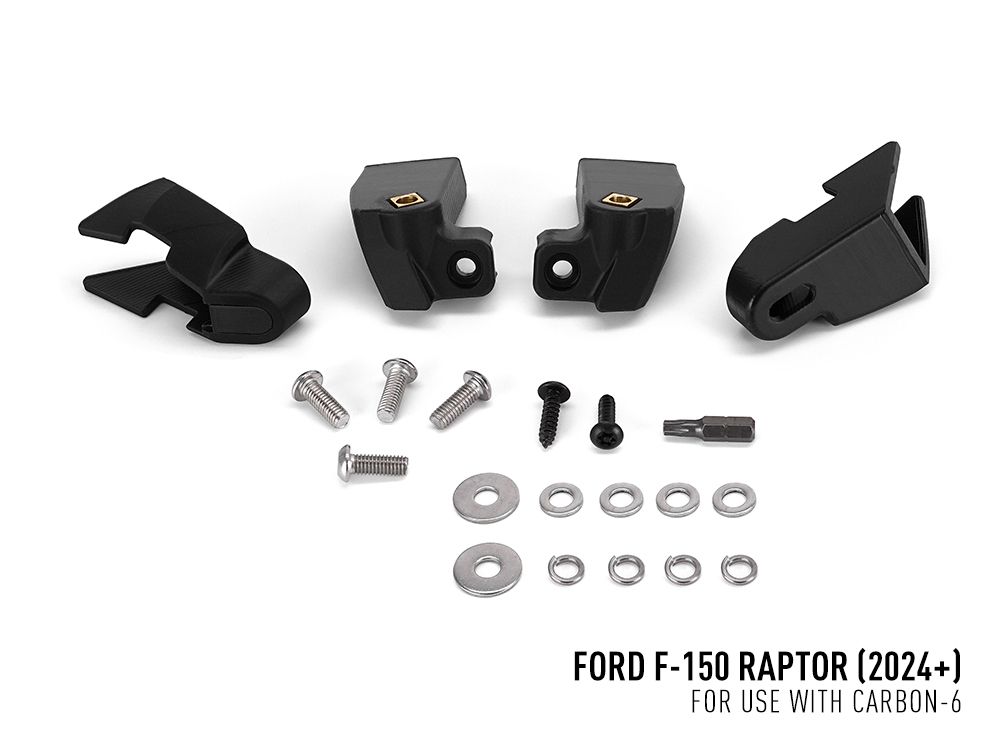

  • Grille Mounting Kit includes: 4x brackets and anti-theft fasteners

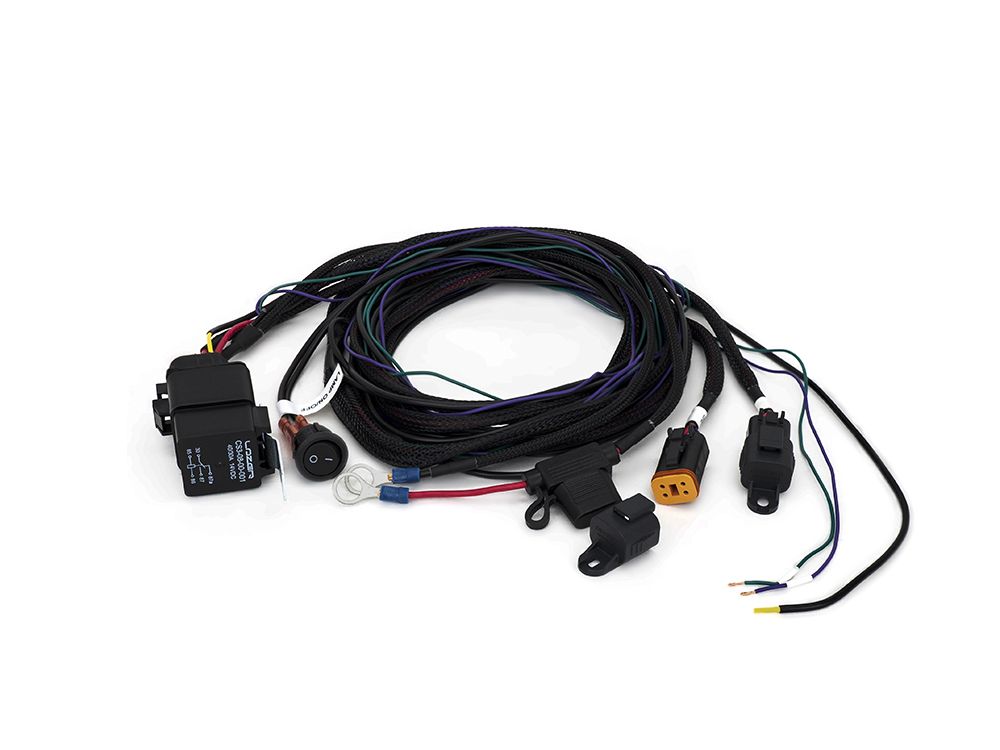

  • Includes Two-lamp wiring kit
  • Brackets made from high strength, UV -stable, composite material
  • 5-year warranty
  • Made in Britain


Technical Specs:



2x
CARBON-6 DRIVE
(BOOST MODE)

2x
CARBON-6 SPOT
(BOOST MODE)

Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 2 lbs 2 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 18,720 Lm

18,720 Lm
Total Driver 'FOV' Flux † 13,100 Lm 13,120 Lm
Colour Temperature 5000K 5000K
Power Consumption 170 Watts 170 Watts
Current Draw (14.4V) 11.8 Amps 11.8 Amps
Connector 4-Pin Deutsch DT
(+25cm Cable)		 4-Pin Deutsch DT
(+25cm Cable)

CERTIFICATION
IP Rating # IP68 IP68
EMC Certification ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2

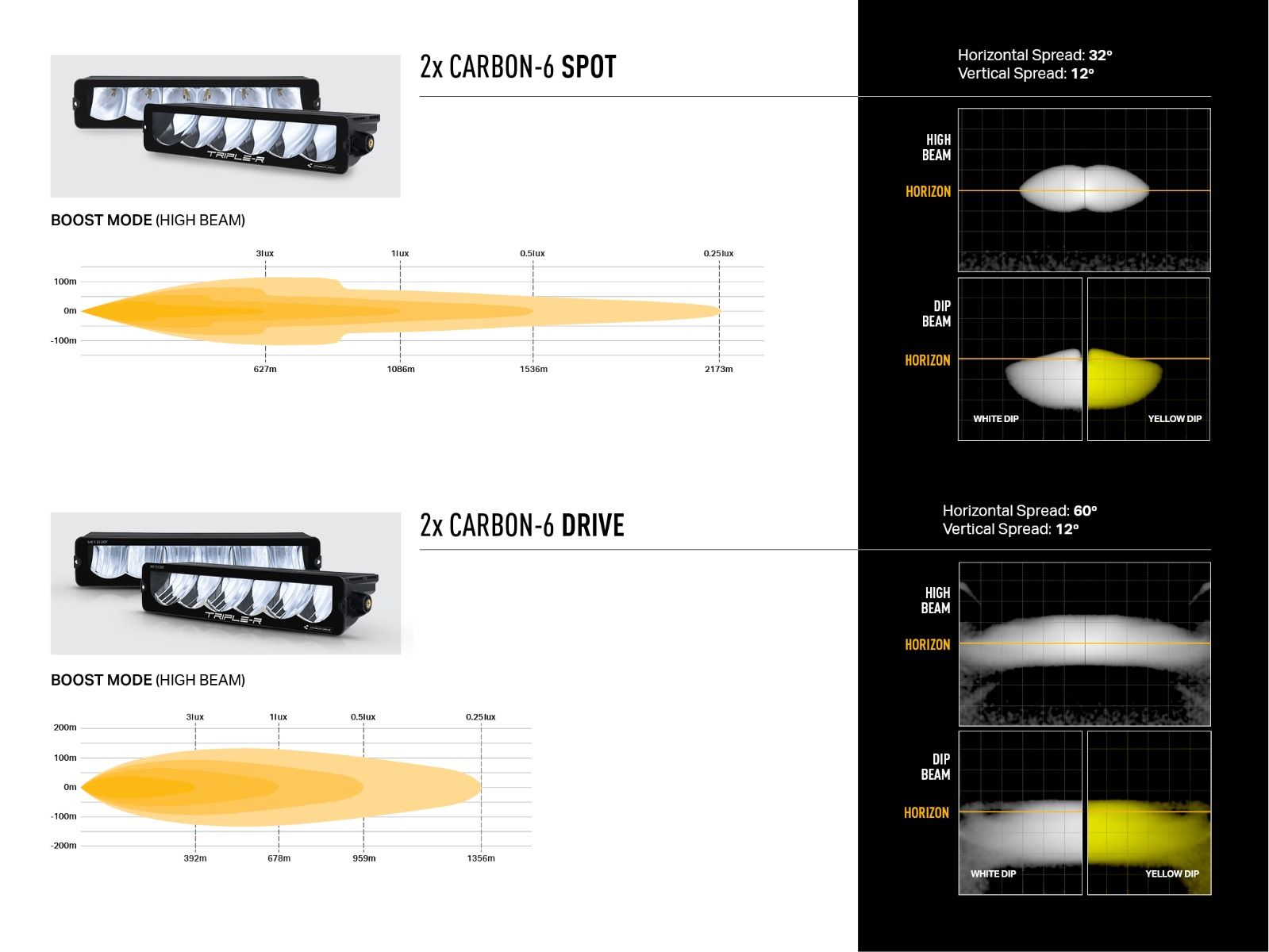

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 60° / 15° 32° / 12°
0.25 Lux 1356m 2173m
0.5 Lux 969m 1536m
1 Lux 678m 1086m
3 Lux 392m 627m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.



Whats Included:

  • 1x Grill Mounting Kit
  • 2x LED Lights (carbon-6 variant)
  • 1x Two-Lamp Wiring Kit
  • Installation Instructions
