For an OE quality, auxiliary LED light bar installation, the Triple-R Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Triple-R LED light bars within the front grille of a growing number of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting setup remains fully robust and secure.

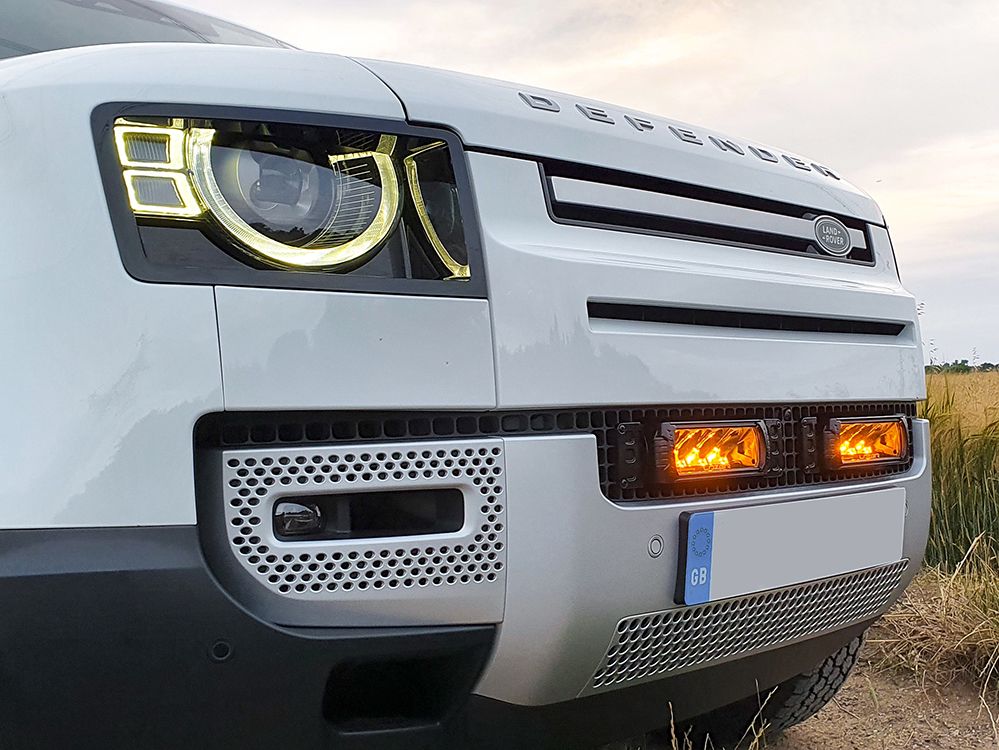

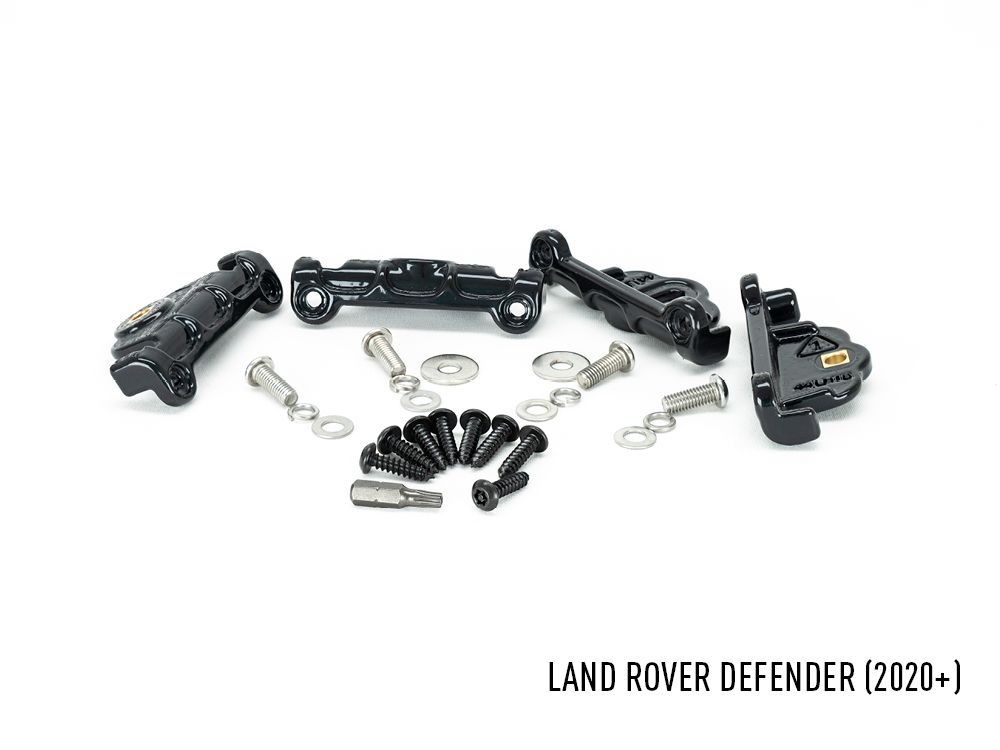

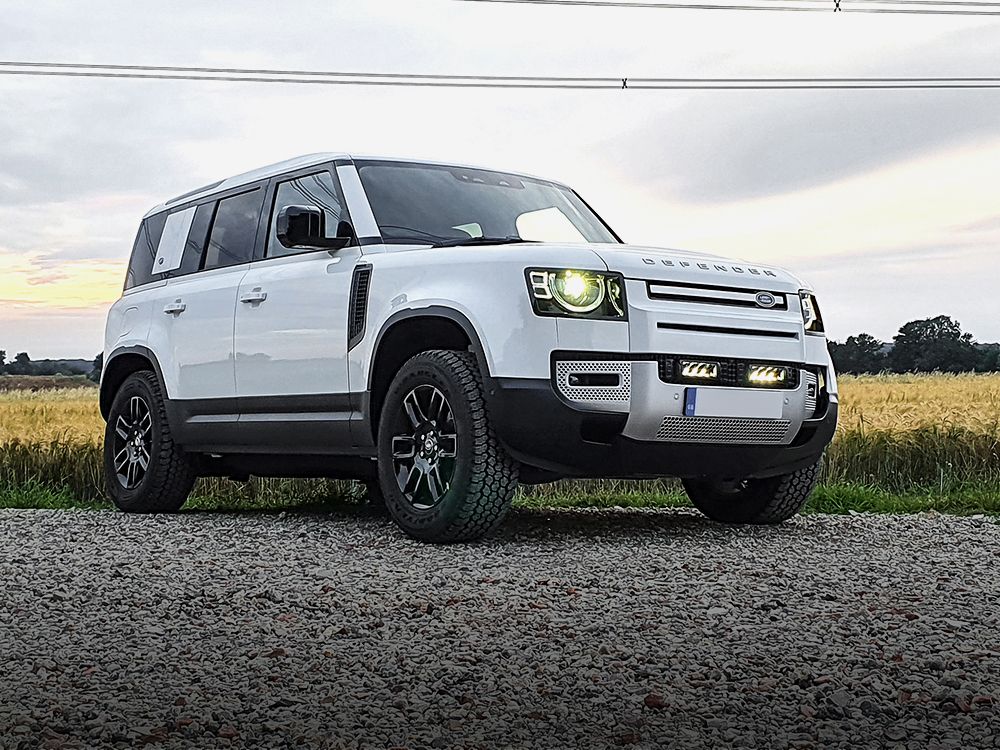

The Land Rover Defender (2020+) integration kit includes a pair of LR-750 High Performance LED lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The Land Rover Defender (2020+) Grille Integration Kits are optimised for use with LR-750 High Performance LED light bars, available in Standard (with integrated Back Light function), or Elite grade. Our warranty does not cover grille mounts which are fitted with non-Triple-R Lights’ branded products.
Product Features:
Bespoke vehicle integration kit for Triple-R Lights LED light bar installation

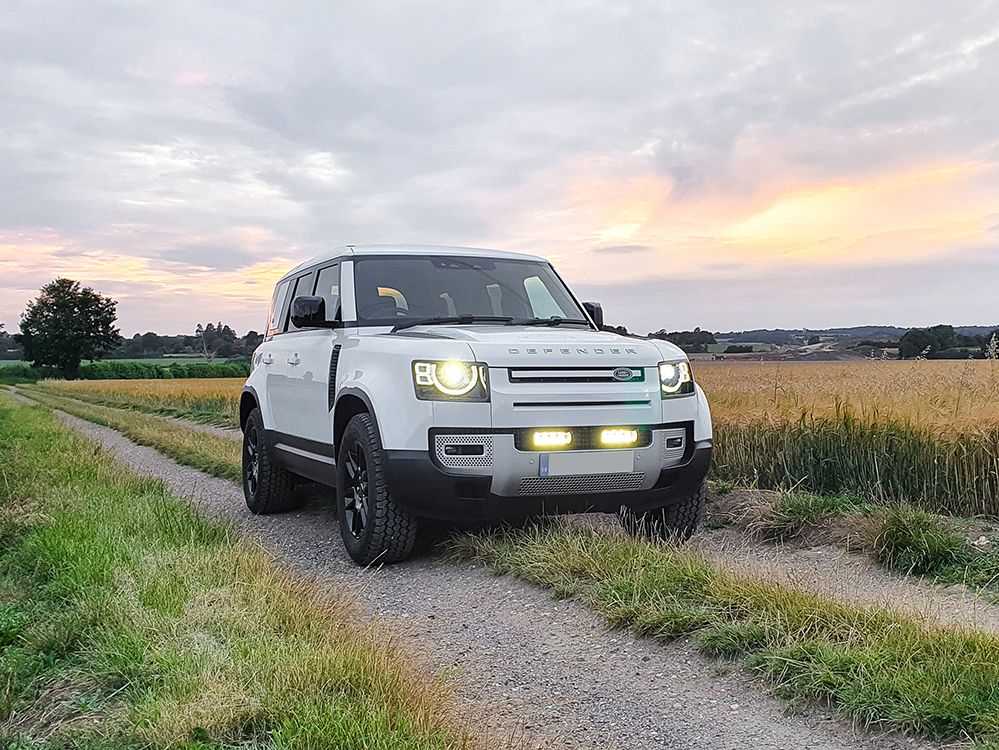

Custom fit for Land Rover Defender (2020+)
Available with: LR-750 High Performance LED lights

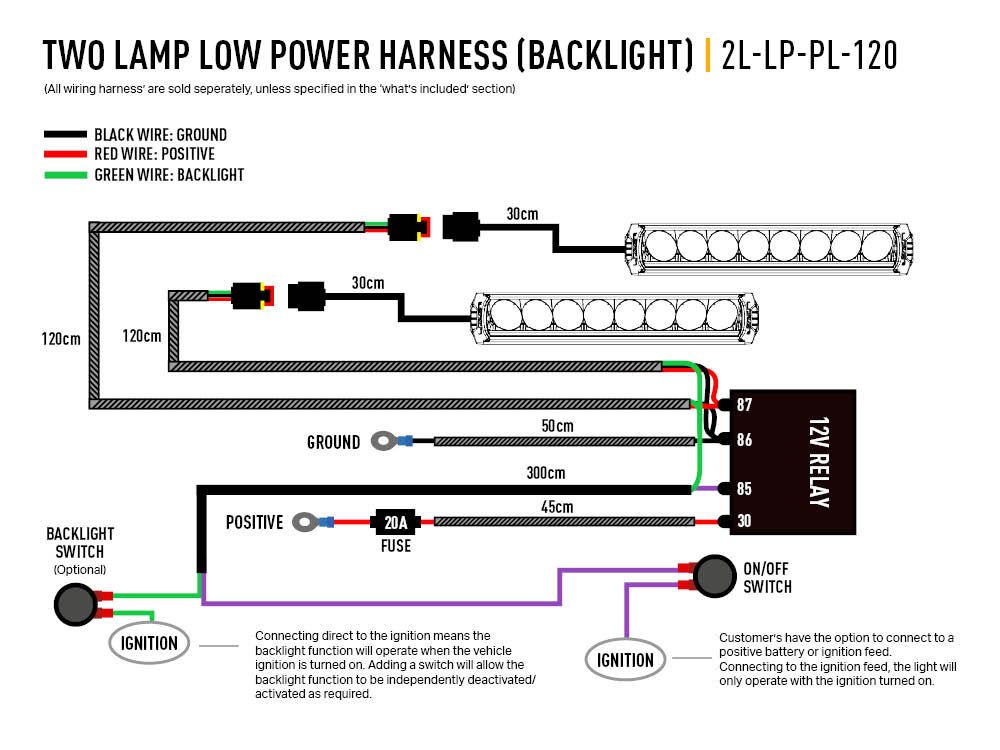

Added option for integrated white and amber backlight function

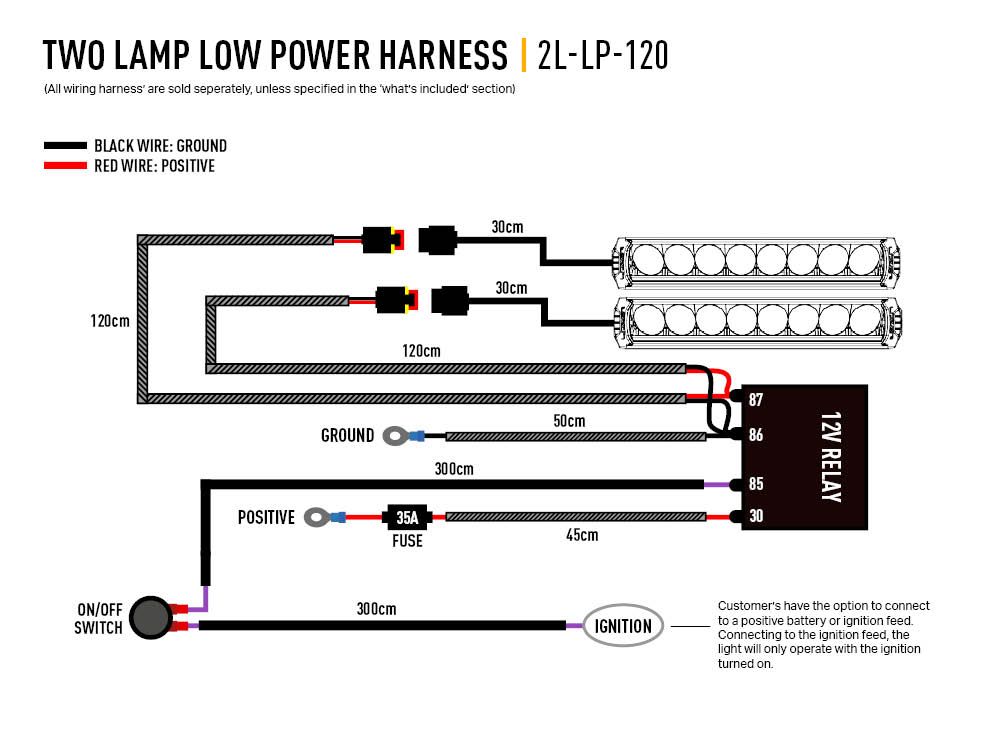

Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, composite material
5-year warranty
Made in Britain
Technical Specifications:

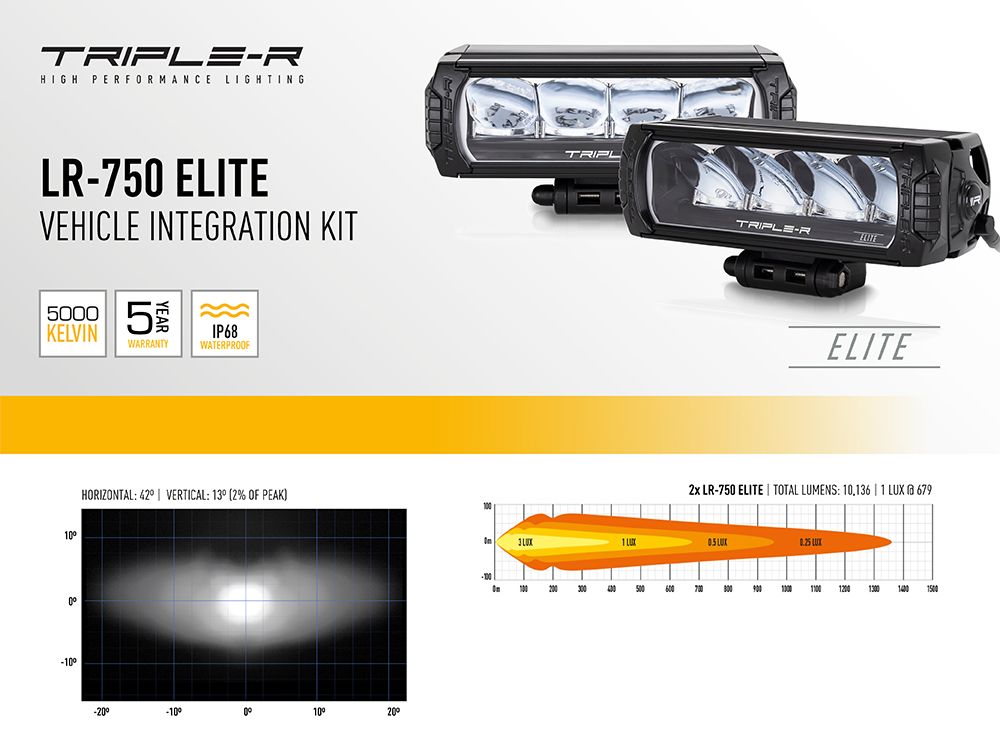

2x LR-750 Elite

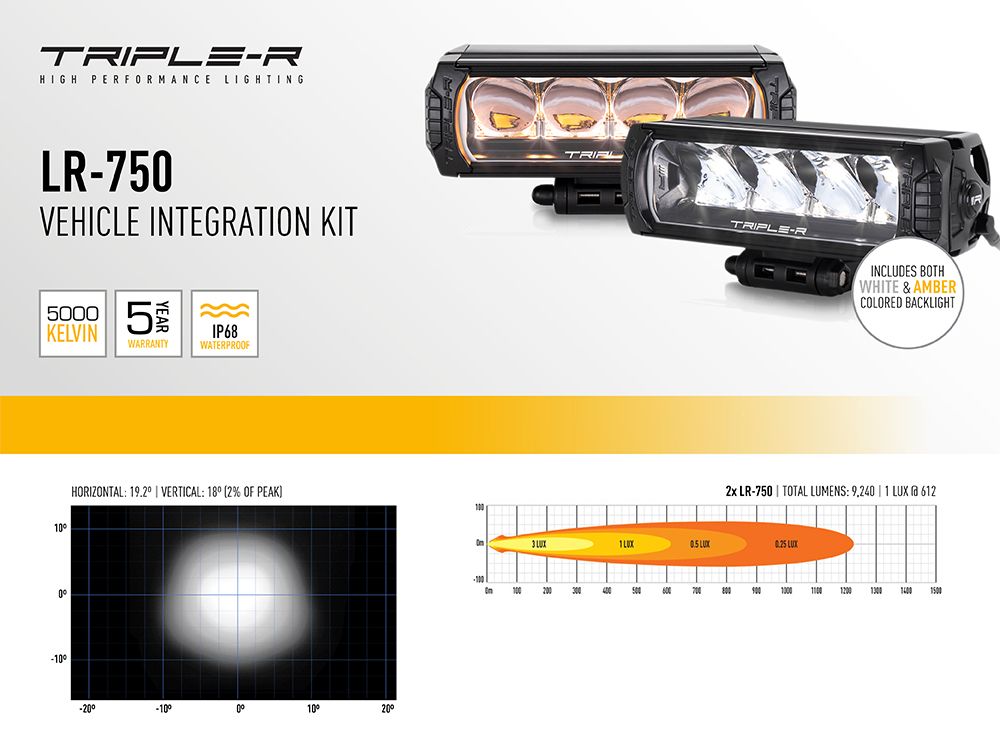

2x LR-750
Voltage Range (DC)
10-32V
10-32V
LED Life
50,000 hrs
50,000 hrs
Weight
2 kg
2 kg
HIGH BEAM FUNCTION
Total Luminous Flux
10136 Lm
9240 Lm
Total Driver 'FOV' Flux †
6680 Lm
5572 Lm
Colour Temperature
5000K
5000K
Number of High Output LEDs
2 x 4
2 x 4
Power Consumption
104 Watts
88 Watts
Current Draw (at 14.4V)
7.2 Amps
6.2 Amps

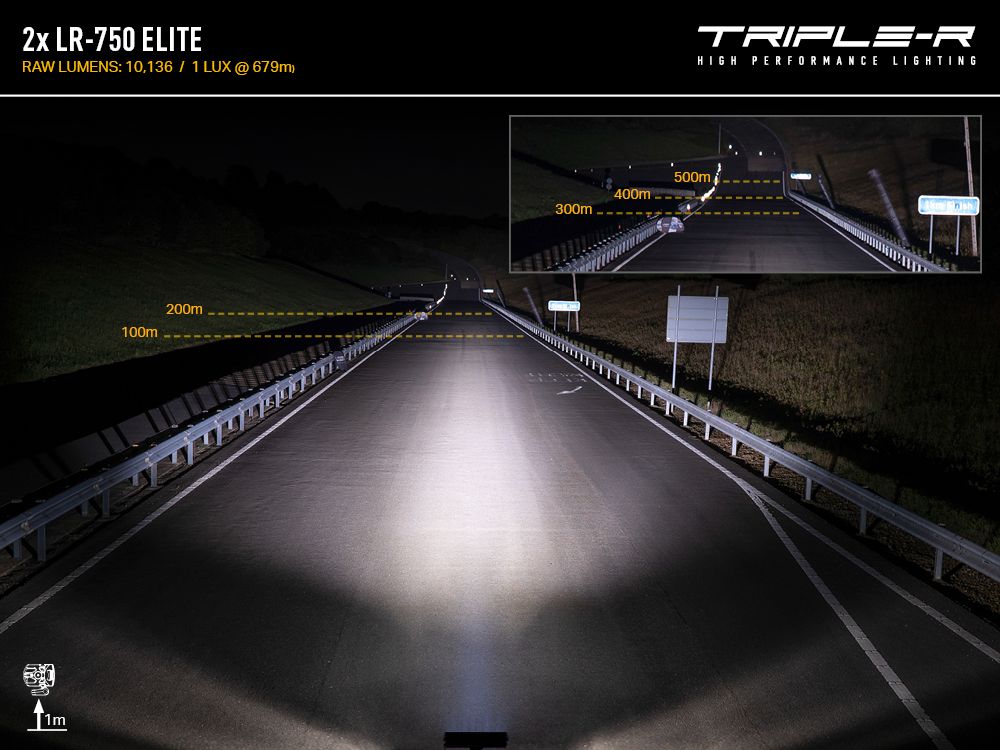

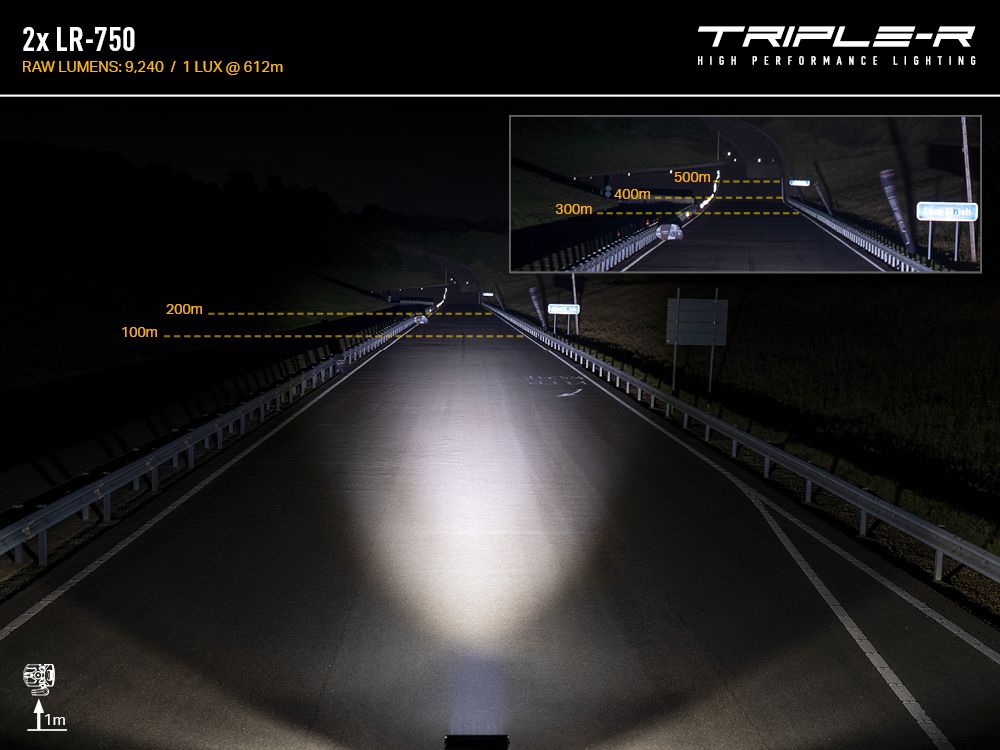

PHOTOMETRIC DATA
Horizontal Beam Angle
42°
19°
0.25 lx Line
1358m
1225m
0.5 lx Line
960m
866m
1 lx Line
679m
612m
3 lx Line
392m
354m
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
